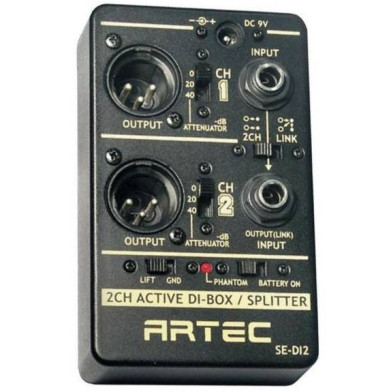

SE-DI2 has two individual channels of active direct interface. This
pedal can work with 9V battery or 48V phantom power from linked amp or

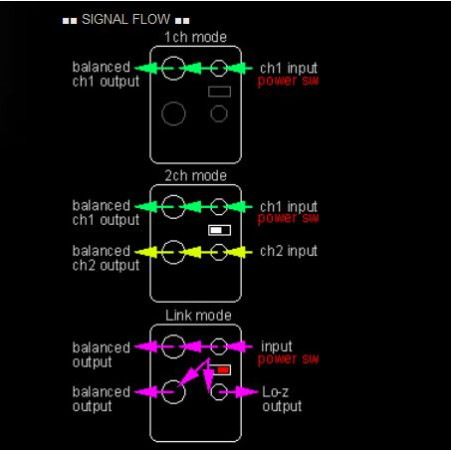

console. Link switch can select individual 2 ch mode or two balanced
output link mode. Each channel has gain attenuation switch. Ground LIFT
switch can isolate the ground level between amps or console. but phantom
power not applied on ground lift mode.
■■ SPECIFICATION ■■
Power supply: DC9V or 48V phantom power
Dimension: 75.5(w) x 115.5(h) x 47.5(d) (mm)
Weight: 260g (include battery)
|Pedal Type||Active Direct box with splitter|
|Power Source||9 Volt DC tip negative or 49v phantom power (not included)|
|Current Draw||1.5 mA|
