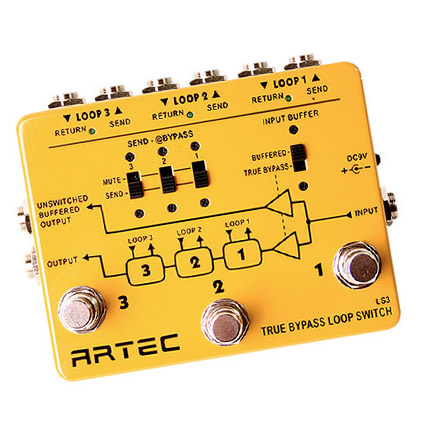

Artec LS3 True Bypass Three Channel Loop Switch

Three Channel / True Bypass Loop Switch
LS3

- SEND : Signal is out through SEND plug
- MUTE : SEND output is muted (short to GND)
Status of SEND plug when bypass (loop is closed)
[SEND - @ BYPASS] switch

   true-bypass mode
- TRUE BYPASS : input buffer is OFF,
   active buffer mode
- BUFFERED : input buffer is ON,
   (before loop switch)
ON/OFF switch of input buffer
[INPUT BUFFER] switch

- VLCS - very low current system (under 1mA)
- DC 9V Regulated required, No Battery operation
- Professional Grade ZERO-LOSS signal switch
   MUTE status
- AUTO-MUTE : When bypass, SEND is on

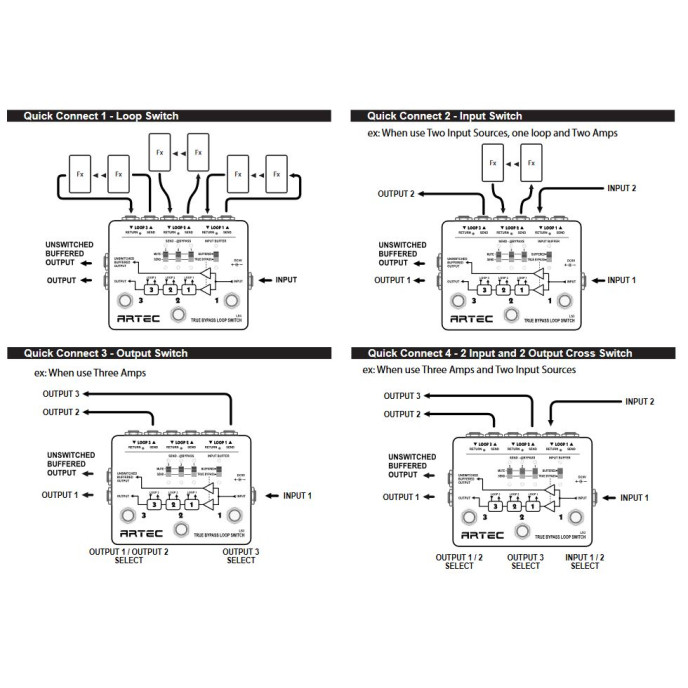

   pedal tuner or extra systems
- Isolated BUFFERED OUTPUT for
- ACTIVE BUFFER SELECT SWITCH
- Three Loops
