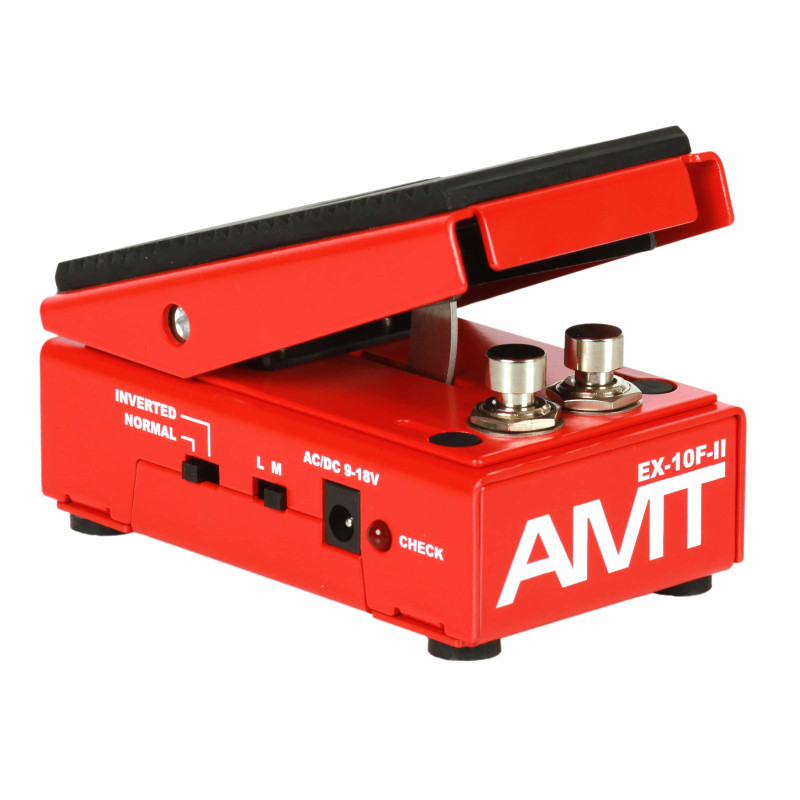

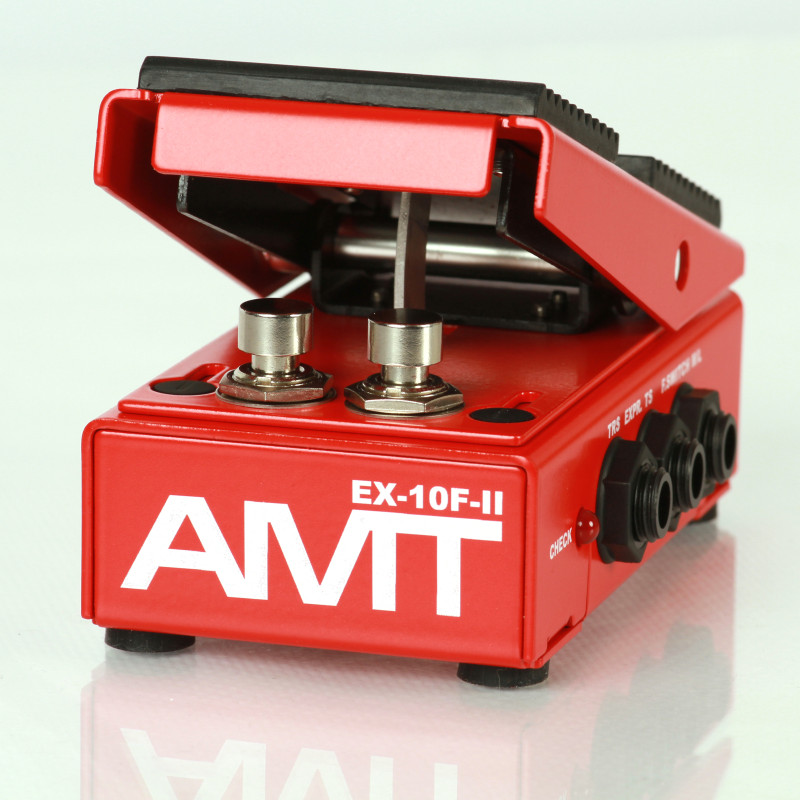

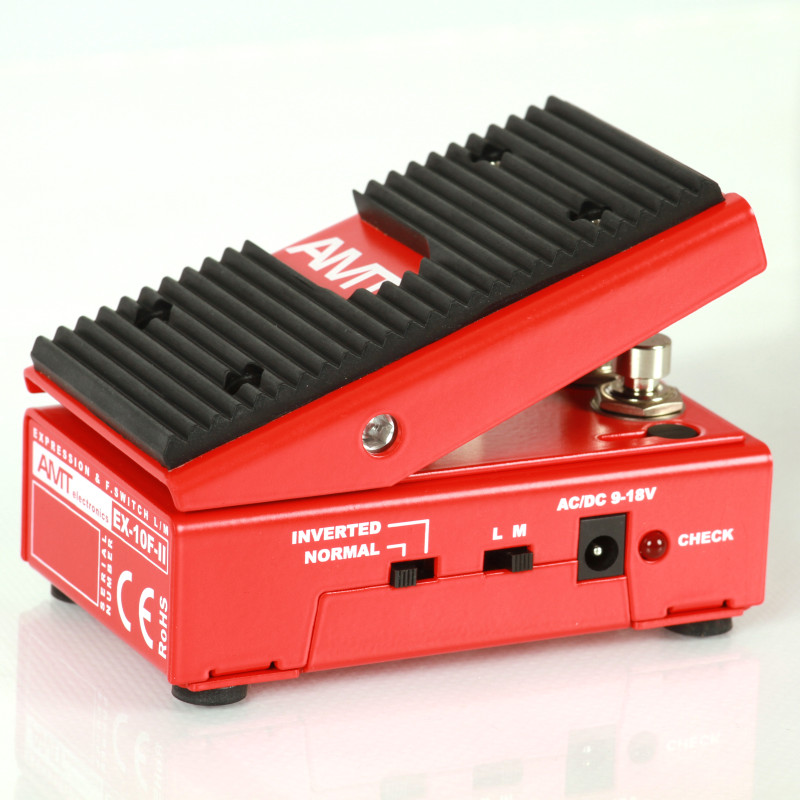

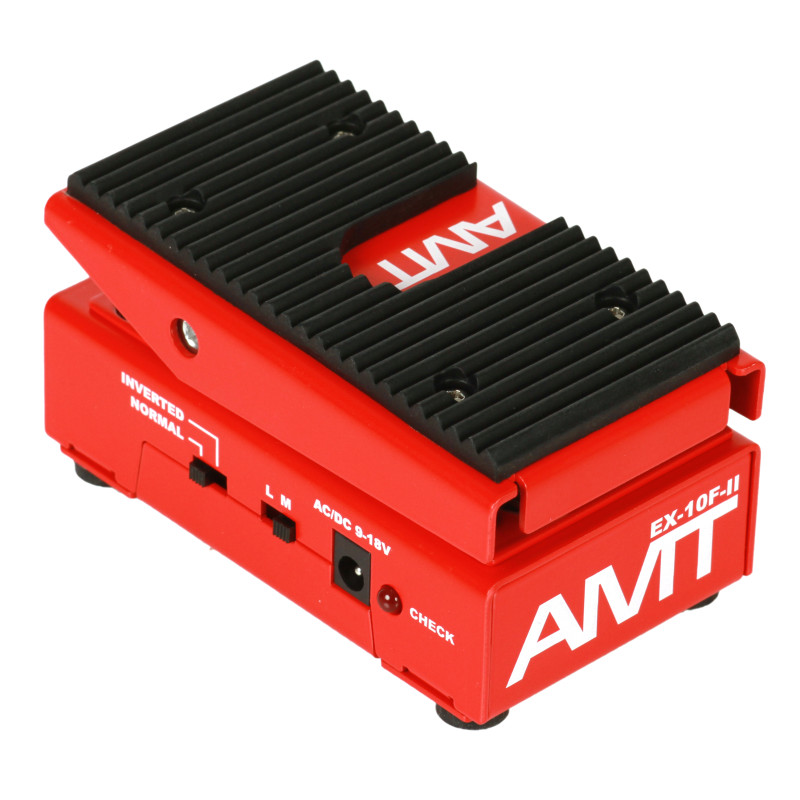

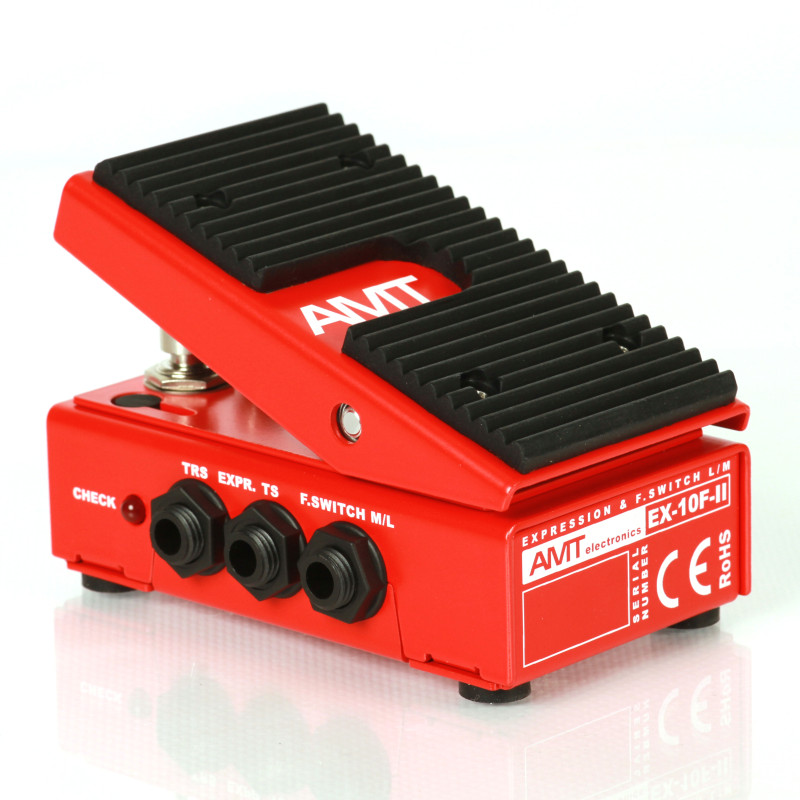

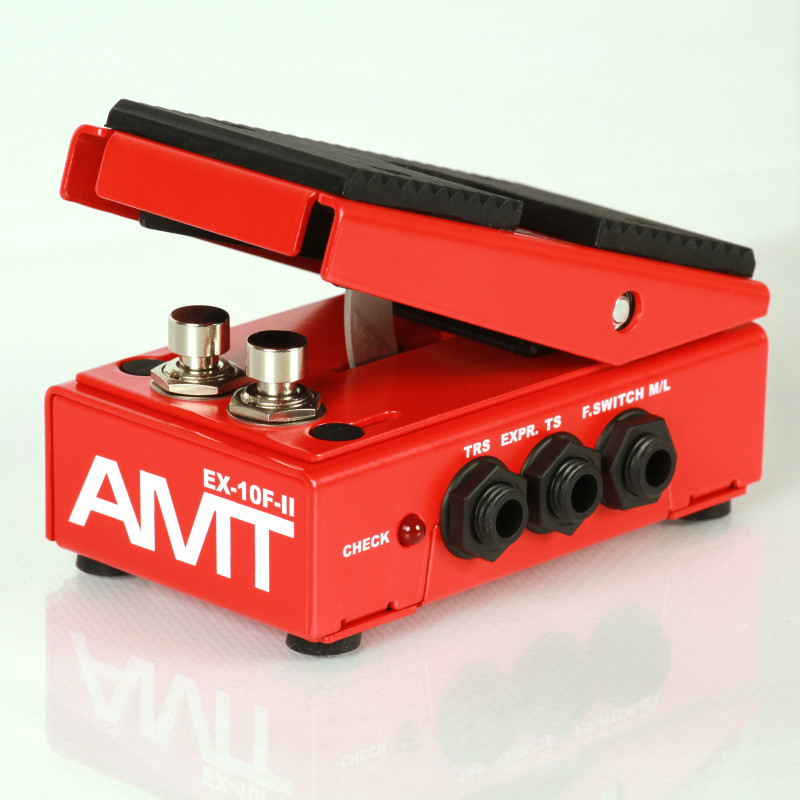

AMT Electronics EX-10F-II Expression and Footswitch Pedal

  • C$269.99

AMT Electronics EX-10FII is a electric guitar expression pedal and gfootswitch all in one unit

Add to Wish List

Compare this Product

Ask a Question

Availability: In Stock

Brand: AMT Electronics

Product Code: EX-10F-II

Tags:  amtpassiveguitar expression pedalguitar footswitch pedalex-10F-II

The AMT Electronics engineering team is pleased to present a new product - the EX-10F-II mini expression pedal/footswitch.

This device is a universal two-in-one device that combines the functionality of an expression pedal and a classic footswitch.

The device as an expression pedal works correctly with those devices that have calibration (for example: Set Max/Set Min)!!!

  • Potentiometer 10kOhm
  • Unlike its predecessor, the AMT EX-50 expression pedal, the new product has a significantly increased range of pedal motion (by 25-30%).
  • The device can be powered from any AC/DC power source in the voltage range from 9 to 18 volts.
  • The EX-10F-II, when used in expression pedal mode, contains on-board TRS and TS outputs for controlling two devices simultaneously, as well as an INVERTED and NORMAL parameter switch.
  • The main feature of the new product is the ability to simultaneously use the device not only as an expression pedal, but also as a footswitch * . There is a special switch on the side panel of the device that allows the user to select one of two operating modes * * : a “momentary” button (footswitch) ( M - Momentary) and a “latching” button (footswitch) ( L - Latch).

    *ATTENTION! Depending on the switching type used in an external guitar device (for example, a guitar processor),  one of two types of cable can be connected to the F.SWITCH M/L output of the EX-10F-II   pedal : 1) TRS (stereo) Jack 6.3 2 ) TS (mono) Jack 6.3 **IMPORTANT! To understand which type of cable and connection mode is right for you, please carefully read the user manual for your device (for example, a guitar processor) to which you plan to connect the  EX-10F-II pedal.


    In addition, the EX-10F-II pedal body has an LED indication of the footswitch operation depending on the selected mode.
    A reliable proven circuit, a durable metal case, and small dimensions make the new product an indispensable accessory both when working with guitar equipment and with any other devices where it is possible to control parameters externally through an expression pedal and/or footswitch.The AMT Electronics engineering team is pleased to present a new product - the EX-10F-II mini expression pedal/footswitch.
Technical
Pedal Type Expression pedal and Footswitch
True Bypass Yes
Power Source 9 to 18 DC volts (center negative)
Batteries No.
Current Draw 20 mA
Inputs 1/4 TS
Outputs One 1/4 TS(mono) and one 1/4 TRS (stereo)
Height 58 mm
Depth 110 mm
Width 62 mm
Weight 450 gram
