Why worry about tripping over
cords or being tied to your speakers when you can go wireless with the
Nady UHF-3 handheld wireless system. The UH-3 transmitter gives you 250'
to 500' of breathing room-enough for you to sing your heart out and be
close to your audience without worry of losing strength or quality of
sound, or make more of an impact during your presentations with your
ability to move around freely.
The Nady UHF-3 wireless system
consists of a half-rack receiver with folding front-panel dual antennas
that gives you clear channel UHF operation for optimum interference-free
performance, and the aforementioned UH-3 handheld transmitter which is
extremely small and convenient.
The wireless receiver gives you a
generous 120dB dynamic range thanks to Nady's proprietary companding
circuitry. It also offers Tone Squelch for locking out potential
interference, DigiTRU Diversity for maximum range and dropout

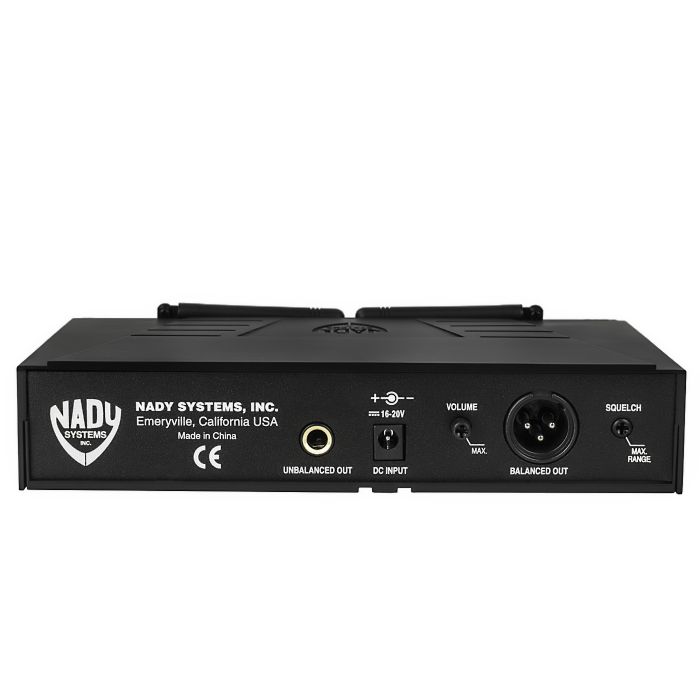

protection. It provides both 1/4" unbalanced and an XLR balanced output
for hooking up to your amp, speakers, mixer, etc.
The UH-3
features a Nady DM-100 unidirectional neodymium dynamic cartridge to
give your voice a truer representation with maximum feedback rejection
and minimal handling noise. There is also an audio mute switch, battery
status LED so you'll never be caught with a dead mic, and works on two
"AA" alkaline batteries.

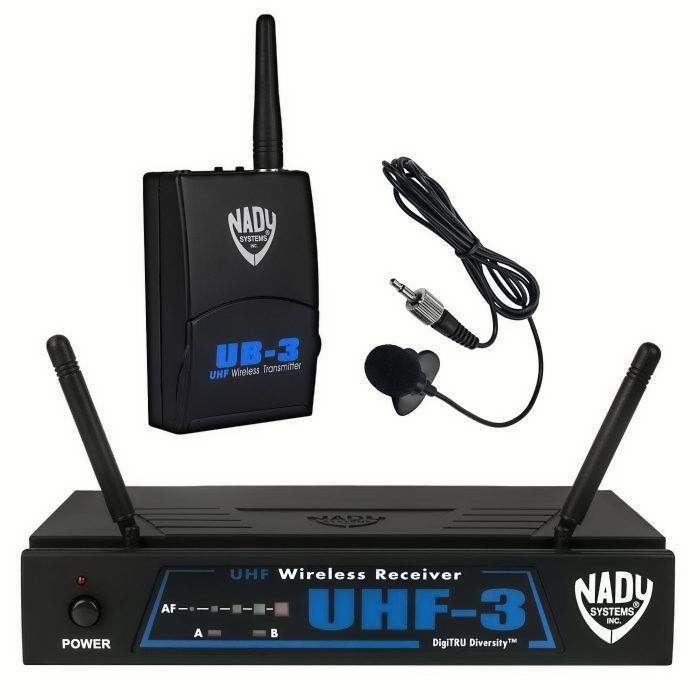

Nady UHF-3 Wireless System
- Half-rack receiver design with folding front panel dual antennas
- Clear channel UHF operation for optimum interference-free performance in any application or locale
- Nady's proprietary companding circuitry for 120dB dynamic
- range, and clear, natural sound
- Tone Squelch for locking out potential interference
- UHF-3
receiver with DigiTRU Diversity for maximum range and dropout
protection, full LED indicators, both 1/4" unbalanced and XLR balanced
outputs, and special circuitry for noiseless transmitter ON/OFF
switching
- Unique snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rackmounting

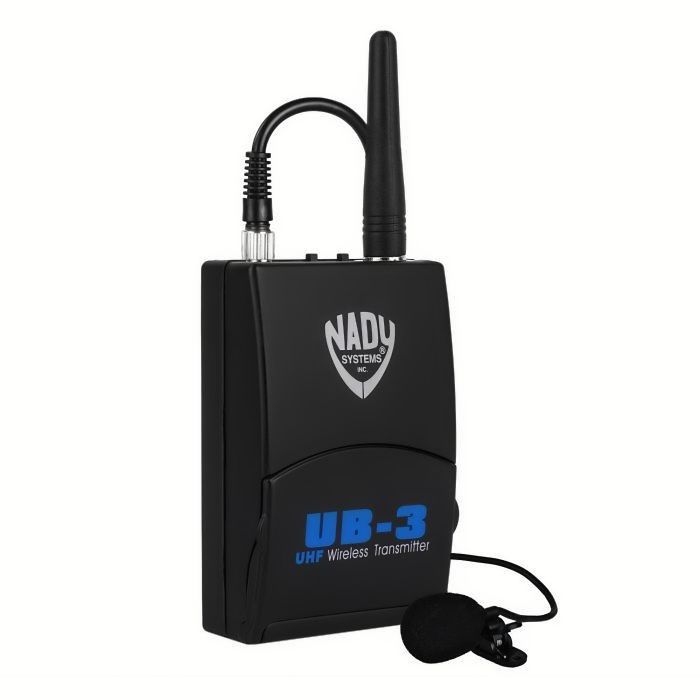

UB-3 Bodypack Transmitter:
- Choice of instrument or headworn/lavalier microphone bodypack transmitter
- Audio mute switch allows convenient audio muting with the transmitter on
- Bi-color LED status indicator: Unit On (green); low-battery alert (orange)
- Locking 3.5mm mini-jack provides secure connection for removable microphone or instrument cable
- Uses two AAA alkaline or NiMH batteries
Technical |
Dynamic Range |
120 dB |
Frequency response |
30Hz - 18KHz, +/-dB |
Number of Channels |
One Channel (fixed frequency) |
Operating Band |
UHF, choice of single frequencies from 470-509 MHz. DigiTRU Diversity (dual antenna) |
Range |
Up to 250ft. typical (depending on site conditions); up to 500+ feet optimum line of sight |
Total Harmonic Distortion |
<0.6% |
