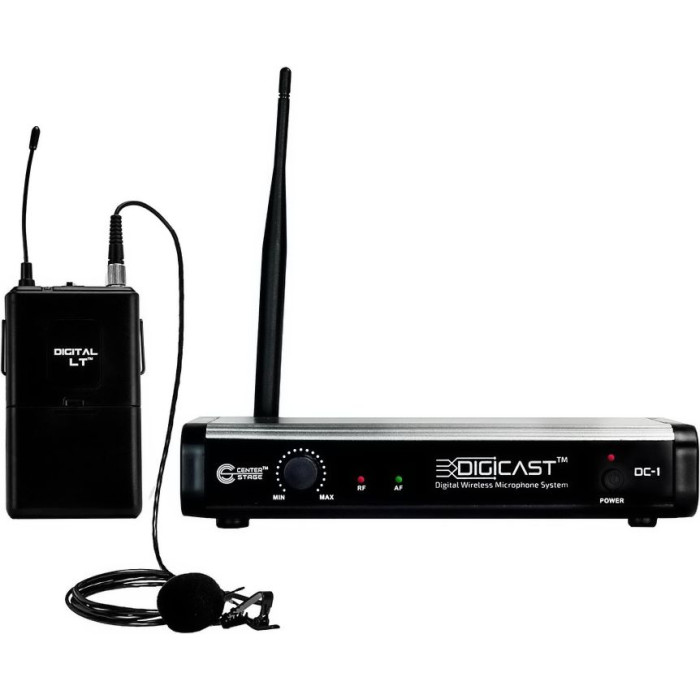

Nady Digicast DC-1 Lavalier System

  • C$69.99

Nady Centerstage Digicast DC-1 lavalier systems offers great performance and value operating as Digital and up to 300 ft of range. Great for presenters, business, church and more

Add to Wish List

Compare this Product

Ask a Question

Availability: In Stock

Brand: Nady

Product Code: Digicast DC-1 Lavalier

Tags:  nadywireless systemswireless lavalierdigital wireless lavalier system

Clear, accurate audio reproduction and problem-free operation

Be the center of the attention at your next gig, presentation, or karaoke session with the CenterStage DigiCast Digital Wireless lavalier Microphone system. Enjoy interference-free wireless transmission, and focus on your performance, not your equipment!

This system can be set up in just a couple of steps and connects to your mixer or amplifier either with the included _ cable (for line level operation) or with a standard XLR microphone cable (not included). Easy volume adjustment from the receiver front panel and quick monitoring of the audio signal coming from the transmitter with an LED allow for flexible and simple operation. The CenterStage DigiCast wireless system delivers great sound every time!


SPECIFICATIONS:
Overall system

UHF 921.80 mhz


Frequency response: 20Hz ~ 20kHz 3dB
Digital format: 48kHz / 24 bit / QPSK modulation
Dynamic range: 120dB
Total Harmonic Distortion: 0.1%
Latency: 3ms
Operating Range: 300 ft. typical

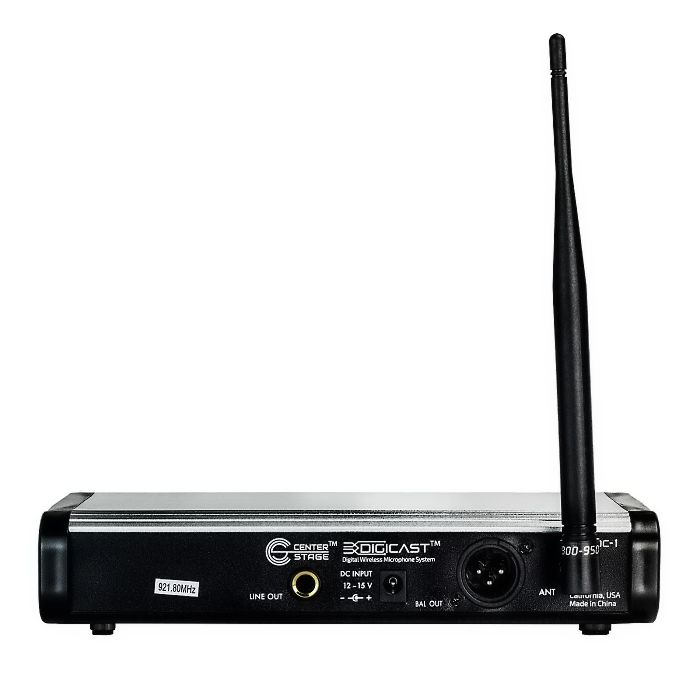

DC-1 Receiver
Receiver Sensitivity: -94dBm
Controls: Power ON/OFF, Volume Control
Output Connections:
_" unbalanced jack (360 mV/ no load)
XLR Balanced output (12 mV/600 Ohm load)
LED Indicators: Power ON, RF/AF LED
Power Requirements: 13.5VDC Regulated @ 400mA
DC input: 2.1mm barrel jack

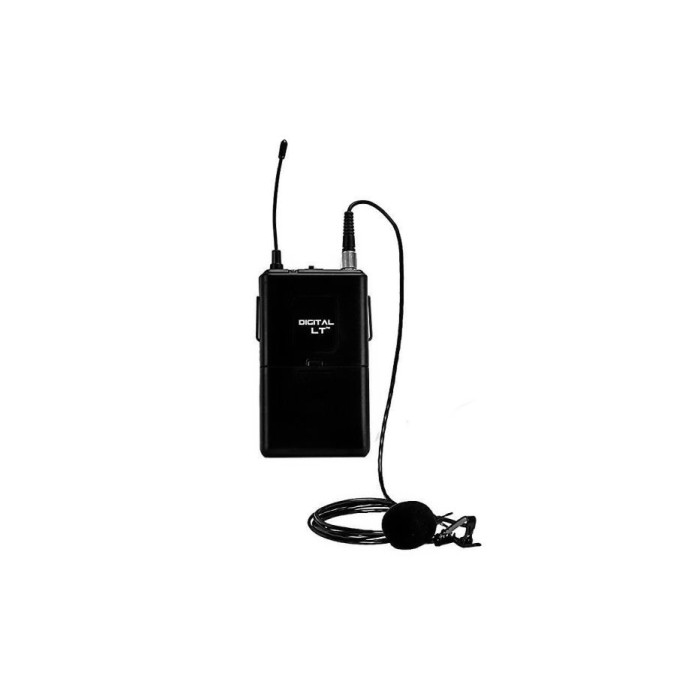

Transmitter
Audio Input: Digital LT: 1/8” (3.5mm) locking mini-jack, for headworn or lavalier microphone
RF Power Out: +13dBm, (50mW maximum allowed by FCC)
CONTROLS: Power On/Off
LED Indicator: Unit on (single flash), Low Battery Alert (red)
Battery Type: 2 AA Alkaline
Battery Life: Up to 11 Hours

Technical
Latency 3ms
Dynamic Range 120 dB
Frequency response 20Hz ~ 20kHz 3dB
Number of Channels One Channel (fixed frequency)
Operating Band UHF 921.80 mhz
Range Line of sight ≥300 feet outdoors
Sample Rate 24bit/48KHz
Total Harmonic Distortion 0.1%
