Nady UHF-4 Handheld System

C$69.99

Nady Digitru UHF-4 Wireless handheld microphone systems offers solid and clear audio for singers, ministry at church, karaoke, presents.

Frequency

Availability: In Stock

Brand: Nady

Product Code: UHF-4 Handheld

Tags: nady uhf wireless systems wireless handheld nady uhf-4

The Nady UHF-4 Handheld Wireless System offers offers high-quality wireless at an amazingly affordable price. Here's live sound wireless with interference-free operation on select UHF frequencies; companding circuitry for a 120dB dynamic range; and clear, natural sound.

A Nady DigiTRU Diversity dual-antenna system prevents dropouts and extends range. Tone Squelch blocks potential interference. The Nady UHF-4 wireless system's full LED indicators keep you on top of things. Nady includes unbalanced 1/4" and unbalanced XLR outputs and silent transmitter on/off.

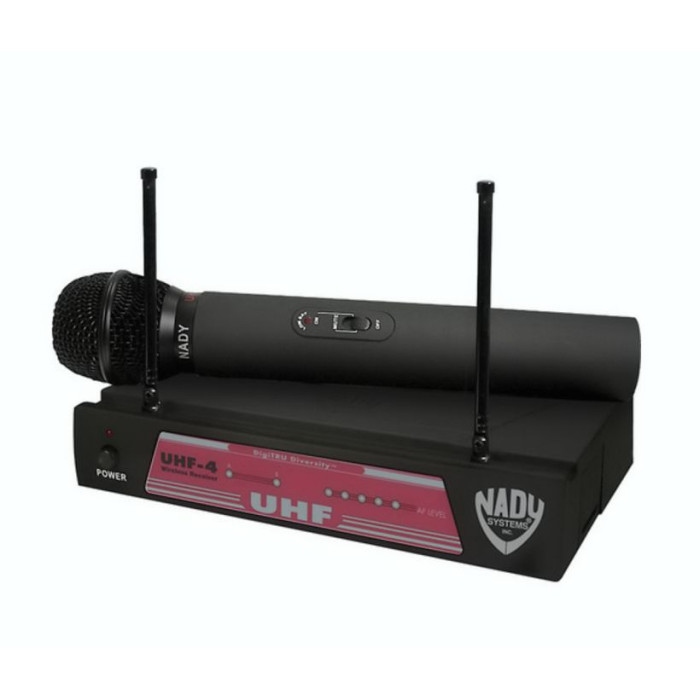

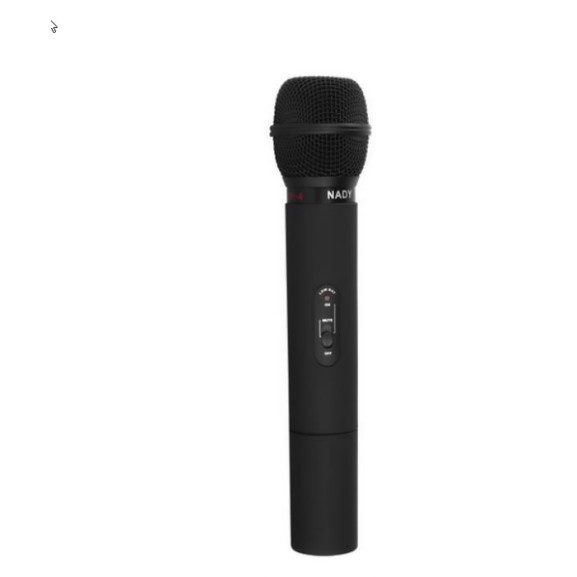

The Nady UHF-4 wireless system includes a receiver and a hand-held microphone transmitter. The microphone has a Nady DM-10D unidirectional neodymium dynamic cartridge for true sound, maximum feedback rejection, and minimal handling noise. The transmitter offers status and low-battery indication and an off/standby/on switch. A 9V alkaline or NiMH battery provides 4-6 hours of continuous usage.

Features

Interference-free operation on select UHF frequencies from 794 to 865MHz
Half-rack receiver design
Dual folding antennas on front panel
Exclusive Nady companding circuitry for a 120dB dynamic range
Clear, natural sound
Tone Squelch for locking out potential interference
DigiTRU Diversity for maximum range and dropout protection
Full LED indicators
Both 1/4" unbalanced and XLR balanced outputs
Noiseless transmitter ON/OFF switching

UHF-4 Handheld Wireless System Specifications:

Frequency Response 30Hz-18kHz, ±3dB
Dynamic Range 120dB
Total Harmonic Distortion <0.6%
RF Carrier Frequency Range UHF, choice of single frequencies in separate bands within 794-865MHz
Frequency Stability ±0.005%, crystal controlled
Modulation FM (F3E), ±20kHz normal
Operating Range Up to 250 ft. typical (depending on site conditions); up to
500+ feet optimum line-of-sight
Receiver
Reception Mode DigiTRU Diversity (Dual Antenna)
Squelch External Control, Tone Key (30.768kHz)
Controls Power ON/OFF, Volume Control, Squelch (Mute) Adjust
Connectors DC in, 1/4"
Reception Mode DigiTRU Diversity (Dual Antenna)
Squelch External Control, Tone Key (30.768kHz)
Controls Power ON/OFF, Volume Control, Squelch (Mute) Adjust
Connectors DC in, 1/4" (6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (±24 mV/600 ohm load)
LED Indicators Power ON, Diversity A/B, Audio LED Bars +Peak
Unwanted Signal Rejection 60dB image and spurious
Power Requirements DC 15V @300 mA, AC/DC adapter included
Dimensions (Max.) 1.75"x 7.5"x 8.1"(4.5 x 19 x 20.6 cm)
Weight 0.9 lb. (0.41 kg)
Antenna 3.5"(9.0 cm), dual telescopic
TRANSMITTERS
Audio Inputs UB-4 Bodypack: 3.5mm locking mini-jack, switchable inputs: instrument, headworn mic, or Lavalier mic
UH-4 Handheld: Integral Nady DM-10D neodymium
Dynamic cartridge
Controls UB-4: Power/Standby/Off, Instrument/
Headworn Mic/Lav Mic, Input Level
UH-4: Power/Standby/Off/Input Level
LED Indicator Single color (red), Unit ON (single flash red), Low Battery
Alert (steady red)
RF Power Out 50mW nominal (maximum allowed by FCC)
Harmonic & Spurious Emissions < -50 dB
Battery UH-4: 9V Alkaline UB-4: 9V Alkaline
Battery Life 10 Hours
Dimensions UB-4
UHF-4 Hand-held: 9-1/2" x 2"
(24 cm x 5.1 cm)
Weight UB-4 Bodypack: 3.1 oz. (88 g) without battery
UH-4 Hand-held: 6.6 oz. (187 g) without battery

Technical
Dynamic Range	120 dB
Frequency response	30Hz - 18KHz, +/-dB
Number of Channels	One Channel (fixed frequency)
Operating Band	UHF, choice of single frequencies from 794-894 MHz. DigiTRU Diversity (dual antenna)
Range	Up to 250ft. typical (depending on site conditions); up to 500+ feet optimum line of sight
Total Harmonic Distortion	<0.6%
