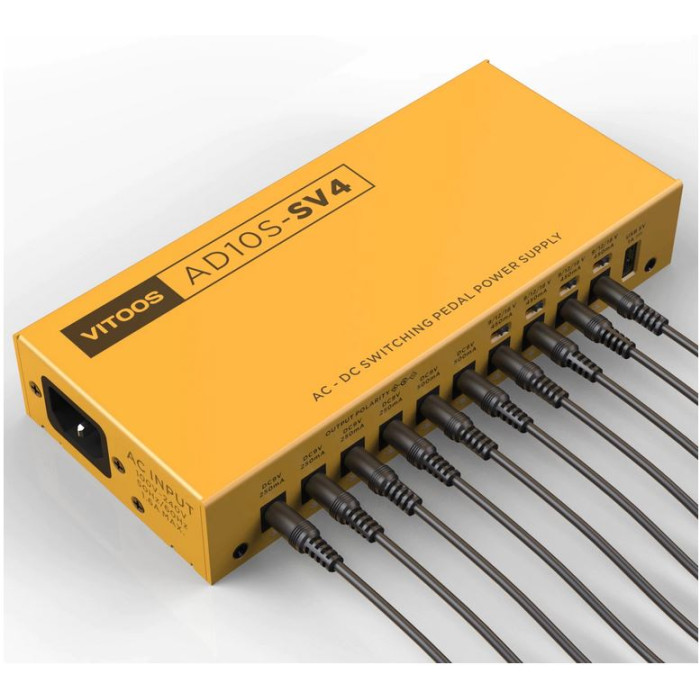

Vitoos AD10S-SV4 Fully Isolated Power Supply
- C$179.99
Order CA$180+ (before taxes) and get FREE Shipping(valid in US and Canada)
- Get 10% OFF your 1st Order ...Use coupon: ONLYPEDALS10
AD10S-SV410 OUTPUTS/ 1*USB OUT
AD10S-SV4
10 OUTPUTS/ 1*USB OUT
INPUT:AC 100V~240V 50HZ/60HZ

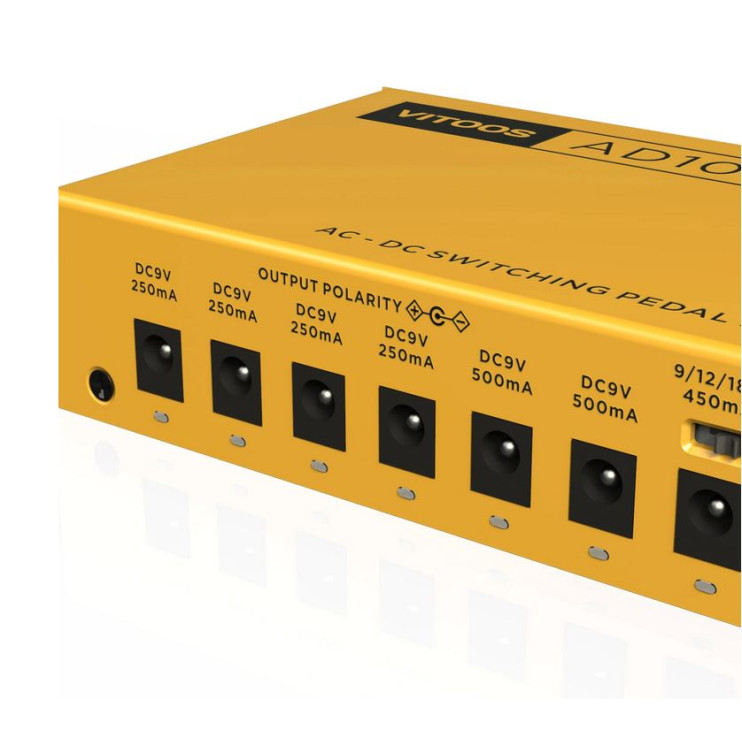

OUTPUT 1-4:9V 250MA
OUTPUT 5-6:9V 500MA

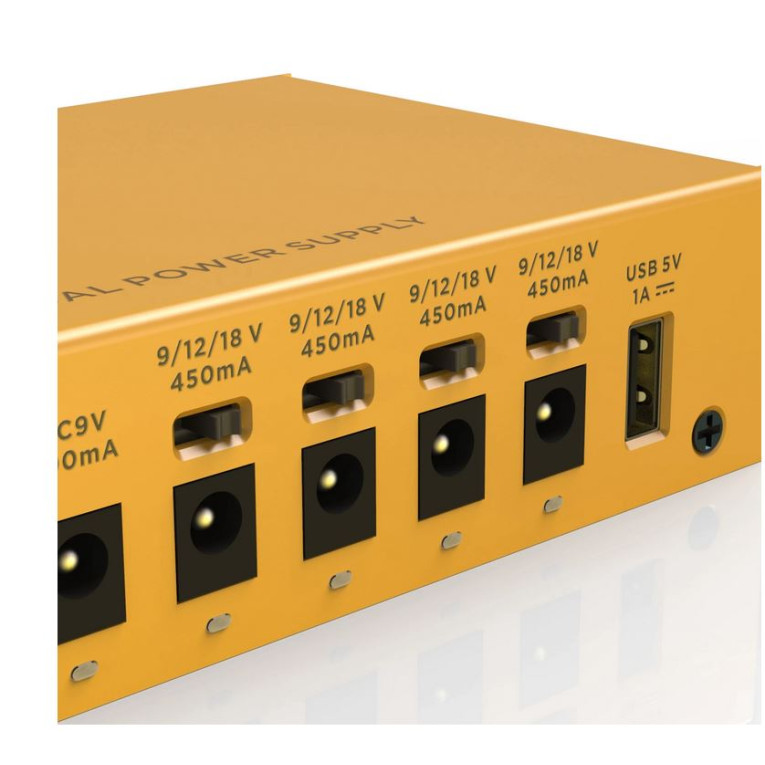

OUTPUT 7-10:9V/12V/18V 450MA
OUTPUT 1-4:9V 250MA
OUTPUT 5-6:9V 500MA
OUTPUT 7-10:9V/12V/18V 450MA
SPECIFICATIONS
SPECIFICATIONS

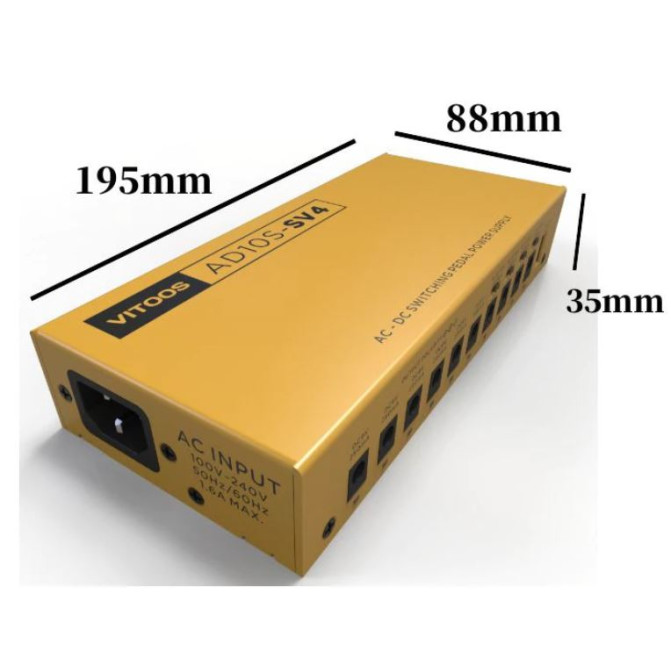

| main body SIZE | 195*88*35mm |
| main body WEIGHT | 605g |
| PACKAGE SIZE | 273 x 236 x 64 mm |
| PACKAGE WEIGHT | 1972g |
| INPUT | AC 100V~240V 50HZ/60HZ |
| OUT POWER | 55.4W（MAX） |
| OUT CHANNEL | 11 |
| OUTPUT 1-4 | 9V250mA |
| OUTPUT 5-6 | 9V500mA |
| OUTPUT 7-10 | 9V/12V/18V450mA |
| OUTPUT 11 | USB 5V1A |
| Short/overload protection |
YES |
| ISOLATED | FULLY ISOLATED |

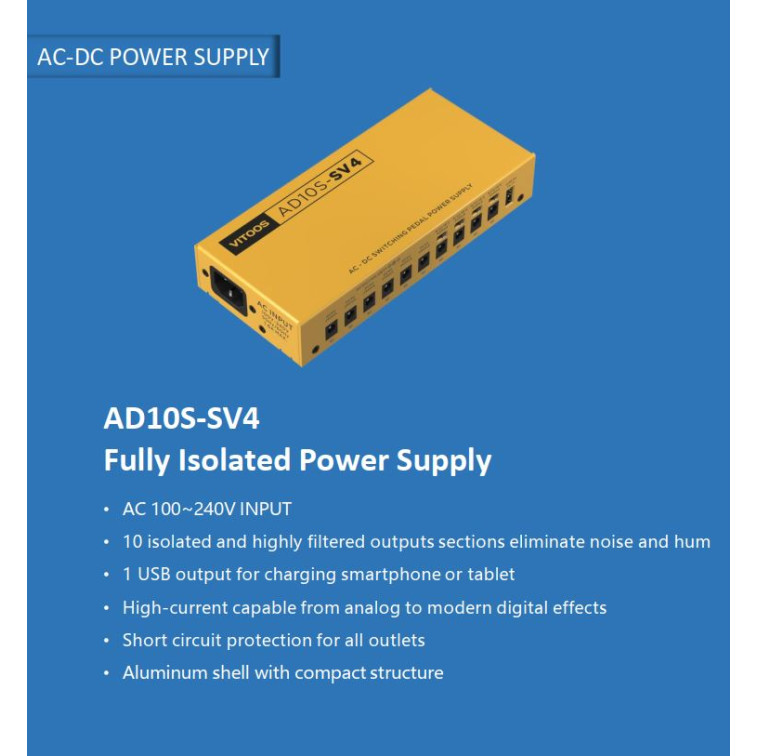

AD10S-SV4
Fully Isolated Power Supply
•AC 100~240V INPUT
•10isolated and highly filtered outputs sections eliminate noise and hum
•1 USB output for charging smartphone or tablet
•High-current capable from analog to modern digital effects
•Short circuit protection fo rall outlets
•Aluminum shell with compact structure

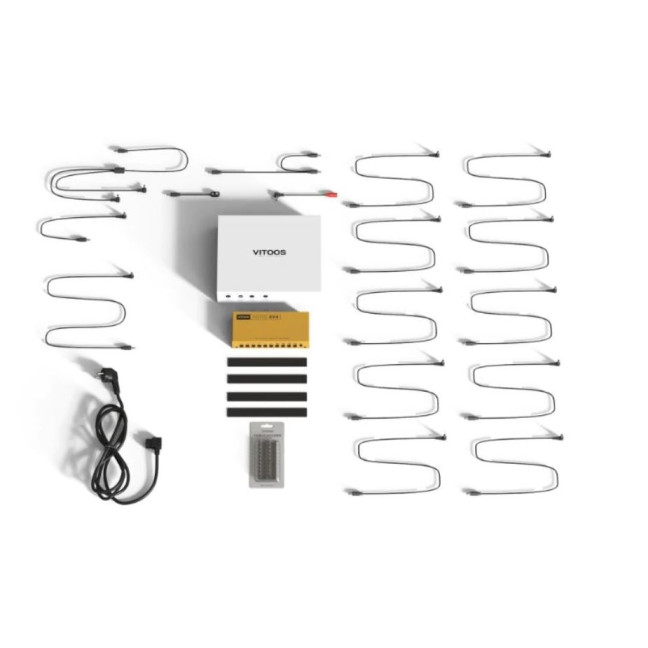

Includes:
1 x AC Cord
1 x Straight to Right-angled 30cm
10 x Straight to Right-angled 60cm
1 x Straight to Right-angled 90cm
1 x DC Voltage Doubler 2 Straight to 1 Straight male
1 x DC Current Doubler 2 Right-angled to 1 Straight male
1 x Battery clip on 9V battery Straight male (negative polarity on the inside)
1 x Polarity conversion Right-angled male to Straight female 15cm
4 x HOOK& LOOP Straps
1 x Cable Locker Set
| Technical | |
| Included Accessories | 1 x AC Cord 1 x Straight to Right-angled 30cm 10 x Straight to Right-angled 60cm 1 x Straight to Right-angled 90cm 1 x DC Voltage Doubler 2 Straight to 1 Straight male 1 x DC Current Doubler 2 Right-angled to 1 Straight male 1 x Battery clip on 9V battery Straight male (negative polarity on the inside) 1 x Polarity conversion Right-angled male to Straight female 15cm 4 x HOOK& LOOP Straps 1 x Cable Locker Set |
| Power Source | Included. 12 volts 3 A. |
| Outputs | OUTPUT 1-4: 9V 250MA OUTPUT 5-6: 9V 500MA OUTPUT 7-10: 9V/12V/18V 450MA OUTPUT 11 USB 5V1A |
| Height | 3.5 cm |
| Depth | 19 cm |
| Width | 8 cm |
| Weight | 605 grams |
