Vitoos DD12-AV4 Fully Isolated Adjustable Power Supply

  • C$179.99

Vitoos DD12-AV4 fully isolated adjustable power supply with 8 outputs for guitar and bass effects and pedals provides clean and zero hum power for your pedal board

Add to Wish List

Compare this Product

Ask a Question

Availability: In Stock

Brand: Vitoos

Product Code: DD12-AV4

Tags:  power supplyvitoosdd12-av4

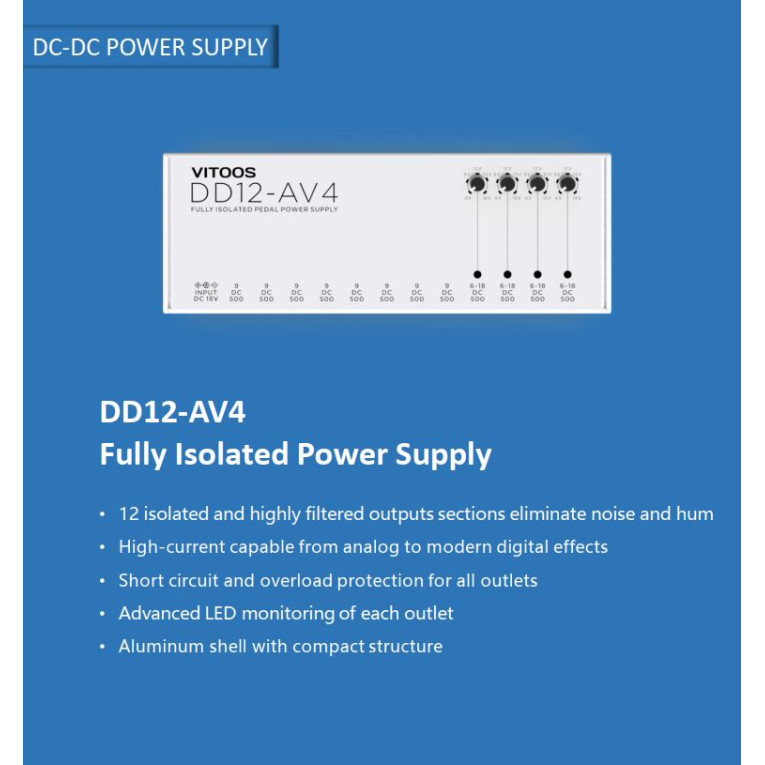

DD12-AV4

Fully Isolated Power Supply
•12isolated and highly filtered outputs sections eliminate noise and hum
•High-current capable from analog to modern digital effects
•Short circuit and overload protection for all outlets
•Advanced LED monitoring of each outlet
•Aluminum shell with compact structure

INPUT:18V2A
OUTPUT1-8:9V 500MA

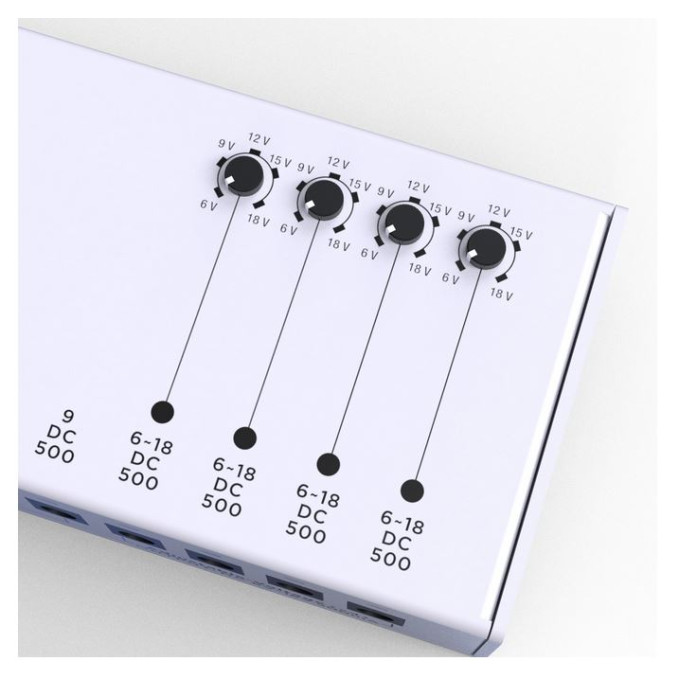

OUTPUT9-12:6V~18V 500MA ADJUSTABLE


SPECIFICATIONS


main body SIZE 190*70*30mm
main body WEIGHT 356g
PACKAGE SIZE
PACKAGE WEIGHT
INPUT 18V2A
OUT POWER 27W(MAX)
OUT CHANNEL 12
OUTPUT 1-8 9V500mA
OUTPUT 9-12 6V~18V 500mA
Short/overload
protection
YES
ISOLATED FULLY ISOLATED

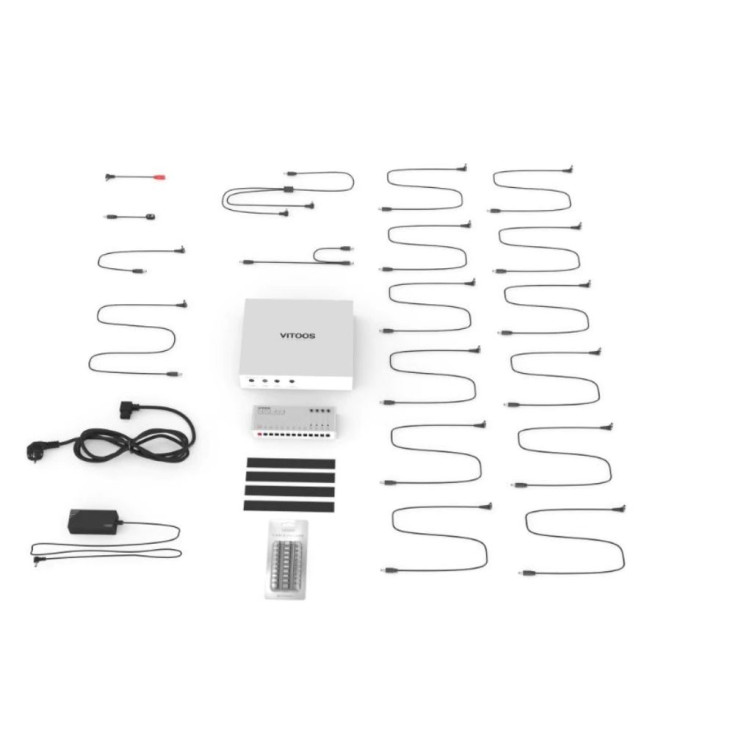

Included:

1 x AC to DC Adapter 18V2A (negative polarity on the inside)
1 x Straight to Right-angled 30cm
12 x Straight to Right-angled 60cm
1 x Straight to Right-angled 90cm
1 x DC Voltage Doubler 2 Straight to 1 Straight male
1 x DC Current Doubler 2 Right-angled to 1 Straight male
1 x Battery clip on 9V battery Straight male  (negative polarity on the inside)
1 x Polarity conversion Right-angled male to Straight female 15cm
4 x HOOK& LOOP Straps
1 x Cable Locker Set



Technical
Included Accessories 1 x AC to DC Adapter 12V3A (negative polarity on the inside)1 x Straight to Right-angled 30cm12 x Straight to Right-angled 60cm1 x Straight to Right-angled 90cm1 x DC Voltage Doubler 2 Straight to 1 Straight male 1 x DC Current Doubler 2 Right-angled to 1 Straight male 1 x Battery clip on 9V battery Straight male (negative polarity on the inside)1 x Polarity conversion Right-angled male to Straight female 15cm4 x HOOK& LOOP Straps1 x Cable Locker Set
Power Source Included. 18 volts 2 A.
Outputs OUTPUTS 1-8: 9V 500MA OUTPUTS 9-12:6V~18V 500MA ADJUSTABLE
Height 3 cm
Depth 19 cm
Width 7 cm
Weight 360 grams
